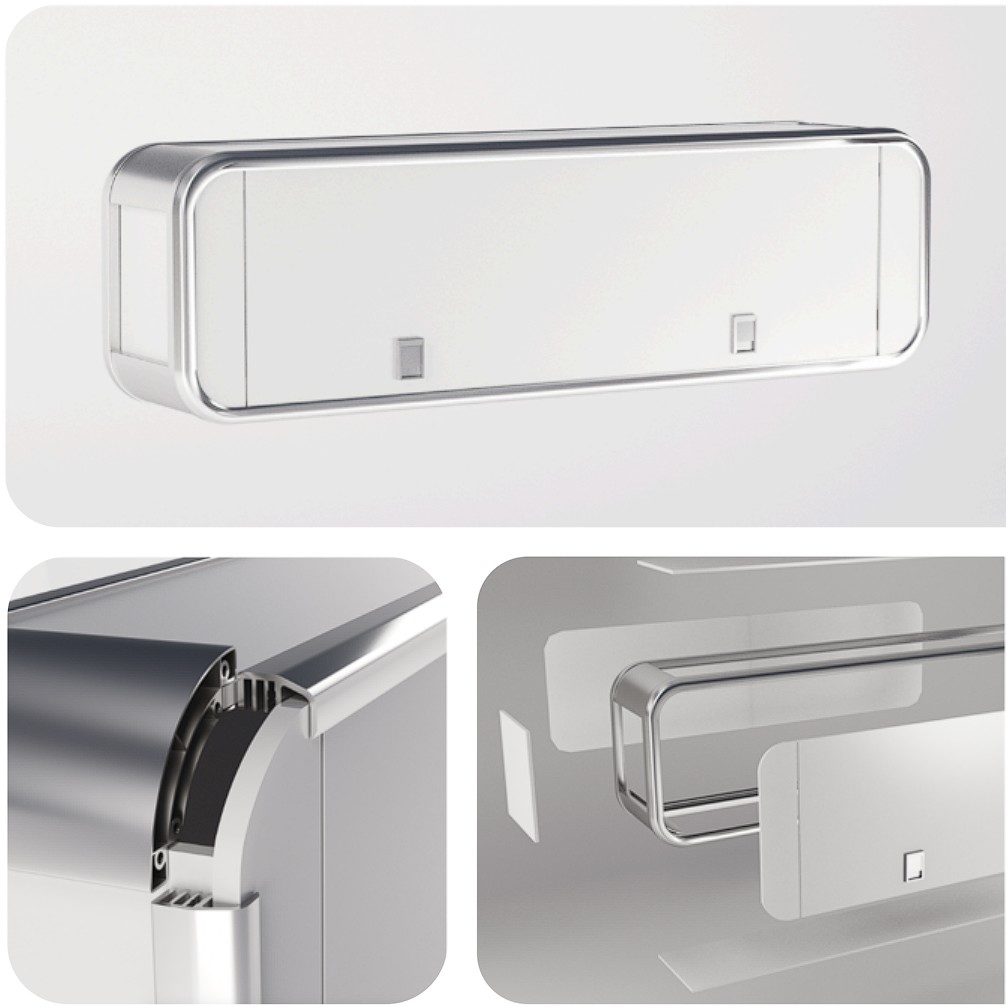

DIY Overhead Cabinet Kit for Sprinter Vans

Bed
Bed Size

East to West Sleeping – 67 1/4″ Long x 61″ WideBed Height
Height 37”
(Bedding / Cushions not included*)

Kitchen
Fridge Size:
Recommended fridge.
Fridge up to 2.6  ft³
— Options with Virtrifigo, Nova Kool and Truckfridge

Water Storage Size:
Cupboard Size: 8.2 ft³ (17.5” wide, 23.15” deep, 35” tall)

Storage
Living area storage capacity:
Total: 23.5 ft³
Kitchen Storage: 8.5 ft³
Water Tank Cupboard: 8.2  ft³
Bench Storage: 7.05  ft³

Garage
Garage Storage capacity:
Total: 101 ft³

^{*Wall & Ceiling panels NOT included – install only.} Worktop Height:
33.4”

Sink & Faucet:

• Recommended sink.
• Recommended burner.
• Recommended Compatible Plumbing.

^{Follow this link for a compatible recommended solution.}

Electrics
Integrated Wiring Loom includes:

• Fuse board
• Switches wiring
• Lighting
• Fuses

• Circuit breakers for protection
• Voltage Sensitive Relay (VSR) for charging
• Voltage readouts
• 2 Double USB Chargers
